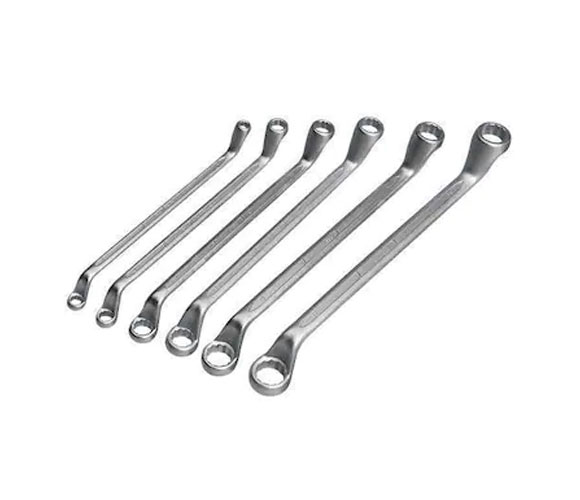

Ring Spanner (Elliptical Panel) U-1015

Features

  • Deep Offset
  • CRV Steel
  • DIN 838
  • Full Polished
  • Bright Chrome/Satin Finish

Specification

Size (mm) Inner Box (Qty.) Outer Box (Qty.)
6 x 7 75 300
8 x 9 75 300
10 x 11 75 300
12 x 13 50 200
14 x 15 40 160
14 x 17 30 120
16 x 17 30 120
18 x 19 25 100
19 x 22 20 80
20 x 22 20 80
21 x 23 15 60
24 x 26 15 60
24 x 27 15 60
25 x 28 10 40
27 x 32 10 40
30 x 32 10 40

Set No. Sets Unit Inner Box (Qty.) Outer Box (Qty.)
60M 6 Pcs. Set(6 x 7 – 16 x 17) Set 5 30
80M 8 Pcs. Set(6 x 7 – 20 x 22) Set 5 20
120M 12 Pcs. Set(6 x 7 – 30 x 32) Set 2 8
